CG、NG 沉淀、濃縮刮泥機
刮泥機是沉淀池和濃縮池的必備設備,沉淀池排泥好壞直接影響到水質凈化的效果。本產品適用于冶金、化工、電子等行業廢水處理系統中。
其主要特點:懸掛式中心傳動,整合刮泥機載荷都作用在工作橋架的中心;采用擺線針輪減速傳動;結構緊湊;有安全銷作過載保護,適用于φ3.5~φ20mm直徑的沉淀池和濃縮池的刮泥。
CG、NG沉淀、濃縮池刮泥機主要技術性能表
型號、規格、性能項目
|
CG(NG)
|
||||||||||||||
CG-3
NG-3 |
CG-3.5
NG-3.5 . |
CG-5
NG-5 |
CG-6
NG-6 |
CG-7
NG-7 |
CG-8
NG-8 |
CG-9
NG-9 |
CG-10
NG-10 |
CG-11
NG-11 |
CG-12
NG-12 |
CG-13
NG-13 |
CG-16
NG-16 |
CG-18
NG-18 |
CG-20
NG-20 |
CG-24
NG-24 |
|
池徑
|
3
|
3.5
|
5
|
6
|
7
|
8
|
9
|
10
|
11
|
12
|
13
|
16
|
18
|
20
|
24
|
池深
|
4
|
4
|
3.8
|
3.5
|
3.4
|
3.3
|
3.8
|
3.8
|
3.8
|
3.1
|
3.2
|
3.3
|
3.3
|
3.3
|
3
|
有效容積M3
|
25
|
34
|
65
|
86
|
~135
|
~150
|
~210
|
260
|
295
|
~356
|
385
|
~603
|
730
|
942
|
~1400
|
轉矩kgf.m
|
420
|
420
|
720
|
720
|
650
|
1000
|
1500
|
1500
|
1800
|
1800
|
2000
|
2800
|
2800
|
3000
|
3000
|
速比
|
1/5133
|
1/8380
|
1/8380
|
1/9251
|
1/9251
|
1/13717
|
1/18521
|
1/18521
|
1/21199
|
1/21199
|
1/24513
|
1/29087
|
1/29087
|
1/29087
|
1/29087
|
輸出轉速rpm
|
0.292
|
0.179
|
0.179
|
0.15
|
0.15
|
0.102
|
0.081
|
0.081
|
0.0656
|
0.065
|
0.0612
|
0.048
|
0.048
|
0.048
|
0.048
|
電機功率KW
|
0.75
|
0.55
|
0.37
|
0.37
|
0.37
|
0.37
|
0.4
|
0.55
|
0.55
|
0.75
|
0.75
|
2.2
|
2.2
|
2.2
|
2.2
|
周邊速度m/min
|
1.082
|
3.08
|
2.81
|
2.78
|
3.33
|
2.53
|
2.97
|
2.54
|
2.7
|
2.5
|
2.6
|
2.412
|
2.21
|
3.02
|
3.62
|
重量T
|
5.48
|
6.5
|
7.8
|
8.18
|
8.52
|
9.3
|
13.25
|
10.85
|
11.8
|
12.9
|
14.7
|
17.2
|
18.8
|
22.1
|
28.5
|
備注
|
鋼制
|
鋼制
|
鋼制
|
鋼制
|
鋼制
|
鋼制
|
鋼制
|

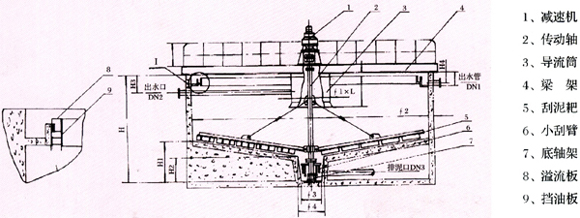

CG、NG沉淀、濃縮池刮泥機外形尺寸表
項目、型號、規格
|
A
|
B
|
∮1×L
|
∮2
|
∮3
|
∮4
|
H
|
H1
|
H2
|
H3
|
H4
|
DN1
|
DN2
|
DN3
|
CG-3
|
3600
|
800
|
800×1000
|
3000
|
600
|
800
|
~5000
|
750
|
600
|
100
|
80
|
50
|
||
NG-3
|
||||||||||||||
CG-3.5
|
4100
|
800
|
800×1000
|
3500
|
600
|
800
|
~5000
|
770
|
600
|
100
|
80
|
50
|
||
NG-3.5
|
||||||||||||||
CG-5
|
5600
|
1000
|
1000×1200
|
5000
|
650
|
800
|
4800
|
810
|
650
|
800
|
400
|
150
|
150
|
100
|
NG-5
|
||||||||||||||
CG-6
|
6600
|
1000
|
1000×1200
|
6000
|
700
|
100
|
4500
|
900
|
650
|
800
|
400
|
200
|
150
|
100
|
NG-6
|
||||||||||||||
CG-7
|
7600
|
1000
|
1200×1400
|
7000
|
700
|
1000
|
4500
|
950
|
650
|
900
|
450
|
200
|
150
|
100
|
NG-7
|
||||||||||||||
CG-8
|
8600
|
1000
|
1200×1400
|
8000
|
800
|
1000
|
4300
|
1000
|
700
|
900
|
450
|
250
|
200
|
100
|
NG-8
|
||||||||||||||
CG-9
|
10000
|
1000
|
1300×1400
|
9000
|
800
|
100
|
4800
|
1000
|
700
|
1100
|
550
|
250
|
250
|
100
|
NG-9
|
||||||||||||||
CG-10
|
11000
|
1000
|
1300×1500
|
10000
|
800
|
1000
|
4400
|
1100
|
750
|
1100
|
550
|
200
|
200
|
125
|
NG-10
|
||||||||||||||
CG-11
|
11700
|
1000
|
1300×1500
|
11000
|
800
|
1000
|
5000
|
1200
|
750
|
1100
|
550
|
200
|
200
|
125
|
NG-11
|
||||||||||||||
CG-12
|
12600
|
1200
|
1500×1500
|
12000
|
1000
|
1200
|
4300
|
1200
|
750
|
1100
|
600
|
200
|
200
|
150
|
NG-12
|
||||||||||||||
CG-13
|
13700
|
1200
|
2100×1900
|
13000
|
1000
|
1300
|
4500
|
1300
|
750
|
1300
|
600
|
250
|
250
|
150
|
NG-13
|
||||||||||||||
CG-16
|
16800
|
1400
|
2500×1500
|
16000
|
1000
|
1500
|
4700
|
1400
|
750
|
1200
|
600
|
300
|
300
|
150
|
NG-16
|
||||||||||||||
CG-18
|
18800
|
1400
|
2500×1500
|
12000
|
12000
|
1500
|
4800
|
1500
|
780
|
1200
|
600
|
300
|
300
|
150
|
NG-18
|
||||||||||||||
CG-20
|
20800
|
1500
|
2600×1500
|
20000
|
1000
|
1500
|
4900
|
1600
|
780
|
1200
|
600
|
350
|
350
|
150
|
NG-20
|
||||||||||||||
CG-24
|
24800
|
1500
|
2800×1200
|
4000
|
1000
|
1500
|
4700
|
1700
|
780
|
1000
|
500
|
350
|
350
|
150
|
NG-24
|
